Portable Transmittance Tester CT Series
![CT-23](https://static.wixstatic.com/media/5892b0_bc4b4303d0494b8fb43d226ff4ca9824~mv2.png/v1/fill/w_337,h_544,al_c,q_85,usm_0.66_1.00_0.01,enc_auto/CT-23%C2%A6%C2%B0-%C2%B2%2B%C2%A6.png)
CT-23
![CT-25](https://static.wixstatic.com/media/5892b0_a069b44d92f34f228a5a5e914144deef~mv2.png/v1/crop/x_2,y_0,w_349,h_564/fill/w_340,h_550,al_c,q_85,usm_0.66_1.00_0.01,enc_auto/CT-25%C2%A6%C2%B0-%C2%B2%2B%C2%A6.png)
CT-25
User Friendly

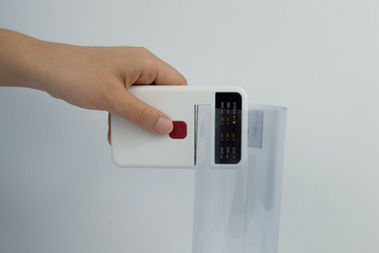

Easy to use and quick results, place the sample in the measurement area, the measurement result will be displayed.
Measurement Data Lock
The instrument has a data lock function. After the measurement, press the HOLD key on the instrument to lock the measurement data, and the measurement sample data will still remain on the display after the sample is taken away.
Optional Measurements
Can measure the transmittance using UV light, visible light, and infrared light.
Digital Display
Digital display, wide measuring range, high resolution
Two calibration modes: Manual and automatic calibration
Parallel Light Path
Adopts a parallel light path design to measurement a samples up to a thickness of 13mm.
Ultraportable + Warranty
One year warranty
Small size, non-slip surface makes it easy to hold and carry.
Rechargeable lithium battery.
CT-23 & CT-25 Technical Specifications
-
Measurement Index:
CT-23 = Ultraviolet (peak wavelength 365nm), Visible light (peak wavelength 530nm)Infrared (peak wavelength 940nm). -
CT-25 = Ultraviolet (peak wavelength 365nm), Visible light (peak wavelength 530nm), Infrared (peak wavelength 940nm), Infrared (peak wavelength 1400nm), Visible light (380nm-760nm,conforms to CIE photopic function standard).
-
Test Accuracy: ±2%
-
Display Resolution: 0.10%
-
Maximum Sample Thickness: 13mm
-
Instrument Size: 115 x 70 x 14mm
-
Measurement Time: 1 Second
-
Battery capacity: 750mAh
-
Power Supply: 5V/1A
-
Screen: Full colour display, 135 x 240mm
-
Charging Interface: USB
-
Operating Temperature: 0 to 40℃
-
Humidity: Less than 85%, no condensation
-
Supplied with: USB cable, Lanyard, Operation Manual
